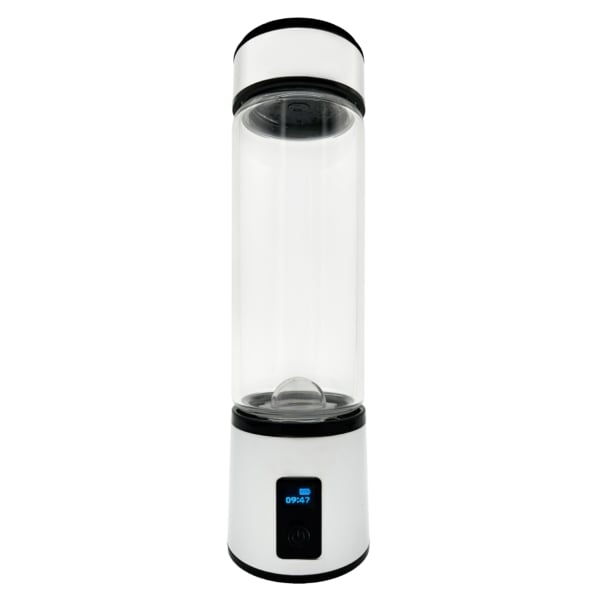

Hydrogen Water Bottle (HW1)
Discover the HW1 Hydrogen Water Bottle – your portable companion for infusing everyday water with molecular hydrogen for enhanced wellness. This innovative device combines cutting-edge technology with user-friendly design to deliver pure, hydrogen-rich water anytime, anywhere.
A hydrogen water generator is a device designed to infuse regular water with molecular hydrogen gas (Hâ‚‚) through a process called electrolysis, where an electric current splits water molecules into hydrogen and oxygen. The hydrogen is then dissolved into the water, creating what’s often marketed as “hydrogen-rich” or “hydrogenated” water, while the oxygen is typically vented out. These portable or countertop machines are popular in the wellness industry and are used primarily for producing water that’s claimed to offer various health benefits.
Key Features and Technology
– Proton Exchange Membrane (PEM) Technology from DuPont® (USA): Ensures efficient hydrogen production.
– State-of-the-Art Solid Polymer Electrolysis (SPE) Technology: Provides reliable electrolysis for high-quality results.
– Compatible with All Types of Drinking Water: Works seamlessly with distilled, reverse osmosis (RO), and other potable sources.
– Automatic Self-Cleaning Mode: Maintains hygiene with minimal effort.
– Separates and Expels Harmful By-Products: Removes chlorine, ozone, and oxides for safer water.
– Industry-Leading Hydrogen Concentration and ORP Value
– H2: >1.8 ppm (5-minute cycle)
– H2: >2.5 ppm (10-minute cycle)
– Longer cycle times yield higher PPM levels
– ORP: -450 to -750 mV
– Safest High-Quality Platinum-Coated Titanium Electrode Plates: Durable and secure for long-term use.
– One of the Best Portable Generators Available: Compact and efficient for on-the-go lifestyles.
– No Filters or Expensive Replacement Parts Required: Cost-effective and low-maintenance.
Quick Start Guide
Set Up:
– Wash the glass bottle and lid with soap and warm water. First, remove the bottle from the generator for HW1, then wash it.
– Remove the waterproof plug that seals the generator, which kept it moist during shipping.
– Twist the bottle onto the generator (or adapter) and tighten it by hand.
– Place the cap on the bottle and insert the USB cable into the unit’s USB port. Connect the other end to the power adapter and plug it into an electrical outlet.
– Charge the unit for 3-4 hours until it is fully charged, then unplug the charger.
– With the bottle attached, rinse the generator with warm water.
– Fill the bottle with clean drinking water up to just below the threads.
– Operate the generator to produce hydrogen water.
How To Operate
1. Press the power button once. The working indicator light will turn blue, producing H2 for 5 minutes. Press it a second time to turn the light green, producing H2 for 10 minutes. Press it a third time to turn the power off.
2. After the 5- or 10-minute cycle, the working indicator light will turn off, indicating the process is complete. For higher H2 concentration, use the 10-minute cycle.
3. Drink the hydrogen water directly from the bottle or pour it into another container. Consume it within one hour for best results, as hydrogen dissipates over time.
4. If the working indicator light flashes red, the battery is low and requires charging.
5. If running more than two cycles, release gas pressure by loosening the bottle lid.

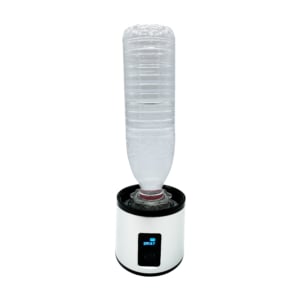

6. Attaching a drinking water bottle: Choose a suitable bottle and screw it tightly onto the generator.
7. Charging: The battery has an expected lifespan of 400 charges. Avoid keeping the machine plugged in all day during use, as this may cause premature battery failure. If the battery dies during operation, it’s okay to finish the cycle while charging, but do not use it again until fully charged and the light stops blinking. Do not keep it plugged in continuously.
8. Self-cleaning: Press and hold the power button for 5 seconds. The working indicator light will turn red, reversing the positive and negative electrodes, and the machine will enter automatic self-cleaning mode.
Daily Use
– Never leave the unit plugged in while using it during the day. Always discharge the battery partially or fully before recharging.
– For maximum benefits, drink 4–5 bottles or more per day.
– Use clean, purified water whenever possible to maintain clean plates.
– Never allow the generator to dry out; leave a small amount of water to keep the electrode plate moist.
Advisories
– Never operate the generator without water in the bottle.
– Keep the USB port sealed by replacing its cover after use.
– The generator is shipped wet; remove the plug before using.
– Use only with any type of clean drinking water.
– Do not use with hot, carbonated, or other beverages.
– Always keep the generator plate well moistened and never store it dry.
– The unit will stop charging when the LED light stops blinking.
– Do not place the generator unit in a refrigerator or cooler.
– Do not soak or submerge the generator unit in water.
– Operate only for the amount of water you plan to drink within 2 hours.
– Avoid direct sunlight or heat sources that could dry out the plates.
– Use room-temperature water. Never freeze the unit or use ice.
– Never use any chemical cleaners on the generator unit.
– Release gas pressure at the lid if running more than two cycles.
– Keep away from children, pets, heat, and flames.
– Do not pull the cable by the wire or unplug with wet hands.
Occasional Descaling Maintenance
1. Depending on the mineral content in your drinking water, clean the electrolysis plates by descaling once or twice a month. To descale, add 1 part white vinegar, lemon juice, or citric acid to 3 parts water in the bottle and let the generator soak in the mixture overnight. Empty and rinse thoroughly with warm water before using the next day.
2. Perform self-cleaning once a week. Do not drink the self-cleaning water; simply pour it away. *Citric Acid cleaner included*
Disclaimer
***These products have not been evaluated and are not intended to diagnose, cure, treat, or prevent any disease. Seek medical advice if seriously ill or attempting to cure or prevent disease.
Product Specifications
| Power | USB 5V / 1A Output: ≤10W |
| Bottle Capacity | 300/350/400 mL |
| Water Type Required | All Potable Drinking Water Types |
| Water Temperature Range | 32° – 140° F / 0° – 60° C |
| Dimensions | 2.6″ x 9″ Ht / 67 mm W x 225 mm Ht |
| Unit Net Weight | 1.2 lbs / 544 grams |
| Hydrogen Generation Range | >2.5 ppm (depends on cycle time) |
| ORP Range | -450 mV ~ -750 mV |
| Bottle Material | Borosilicate glass or plastic (if applicable) |
Troubleshooting
| No visible bubbles | – Check power source<br>- Remove plug and obstacles |
| Light blinks when operating unit | – Low battery indicator<br>- Charge unit ASAP |
| Low PPM levels when tested with blue drops | – Allow 7 days for break-in<br>- Operate the unit multiple times to activate PEM membrane |
| Wetness in generator | – Units are shipped wet |
| Battery not charging | – Check for defective plug or cable |
| Machine is leaking water | – Check all seals, tighten lid<br>- Fill water to 1/2 of top rim |
| Bottle has odor or unit makes less gas | – Clean and descale as needed<br>- Use a different water source |
| Unit stopped working | – Contact for support |
| Glass bottle broke | – Contact to order replacement |
| Unit stopped charging | – Contact for support |
| For all other issues or unsolved problems, contact for support |
Warranty
One year for defective parts or labor.
